1.BWTS/SCRUBBER Design & Evaluation |
According to the drawings and documents on board,study the BWTS/SCRUBBER arrangement plans and preliminary determine the BWTS/SCRUBBER treatment method and equipment type. |

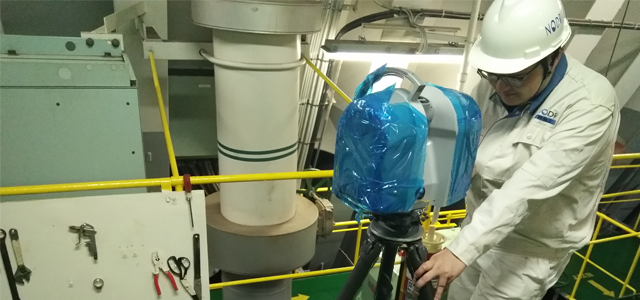

2.On-board(3D-Scanning) |
Considering the selected BWTS/SCRUBBER equipment and arrangement on board;determine the equipment arrangement and cable coute;carry out the 3D-Scanning. |
3.Approval Design |
According to the requirements of the Classification,prepare the relevant approval drawings,calculation and final drawings. |
4.Reverse Process(point-cloudy) |
Edit the point-doudy data(*.pts) and exchange the data into solid data by reverse process. |
5.3D Production Design |
Carry out 3D modeling design;provide the fabrication drawings,installation drawings,etc. |

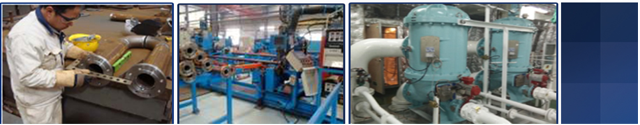

6.Equipment Installation Process |
According to the construction drawings,finish the pipe fabrication in workshop and install the BWTS/SCRUBBER equipment on board. |
7.BWTS/SCRUBBER System Commissioning |
After the installation,do the commissioning(before commissioning,training and authorization from equipment manufacturer is neoessary). |
